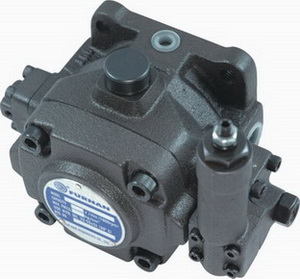

◆Mid Pressure Variable Displacement, Vane, Pumps aims at the demanded mid pressure on the hydraulic circuits. To control the up and down of total pressure by a guide pressure, it’s able to make the circuits more effective, reduce the noise and the oil temperature. Suitable for diverse hydraulic machines or the machines with other purposes.



◆型式號碼表示法 / MODEL NUMBER DESIGNATON

  VHP──F──40──A3   -   -T

     ①       ②      ③        ④         ⑥



① 系列号码Serial Nunber

② 装配型式 Assemble model   L:脚座型 Foot Type   F:法兰型 Frange Type

③ 吐出量Delivery capacity

④ 压力调整范围Range of Adjusting    A1: 15-35kg/cm²           A2: 35-70kg/cm²

                                                           A3: 70-105kg/cm²         A4: 105-140kg/cm²

⑤ 設計號Desing Number                    T:花軸 Spline Shaft    *請參考VHI花軸尺寸





◆性能表 / SPECIFICATION

型式 號碼 MODEL	最高壓力 (瞬間) MAX PRESSURE kg/cm2	吐出量 OUTPUT FLOW AT 3.5kg/cm2 1800 r.p.m. l/min	配管尺寸 PORTS SIZE			回轉速度 SPEED r.p.m		重量 WEIIGHT (kg)
			出口 OUT	入口 IN	回油 DR	最低 MIN	最高 MAX	腳座型 FOOT TYPE	法蘭型 FLANGE TYPE
VHP-20	140	20	1/2”	3/4”	3/8”	800	1800	12.5	9.5
VHP-26	140	26
VHP-30	140	30
VHP-40	105	40
VHP-54	140	54	3/4”	1”	3/8”	800	1800	35	25
VHP-70	105	70
VHP-86	105	86



◆外觀尺寸圖 / DIMENSIONS(IN MILIMITERS)

VHP-20,30,40.zip

VHP-54,70,86.zip
