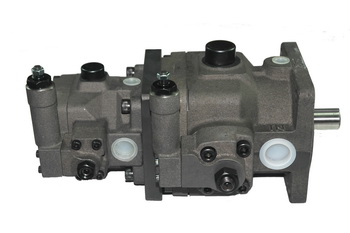

◆To unify two sets of Variable Displacement Double, Vane Pumps, which is replaced by one set of motor to drive it directly. The oil exhalation of two sets of Variable Displacement Double, Vane Pumps offers individual oil circuits to drive an activator. In addition to driving the same activator, the biggest feature is to drive two sets of Variable Displacement Double, Vane Pumps at the same axis to save the space, and it's easy to get the high and low pressure within the same circuit.



◆型式號碼表示法 / MODEL NUMBER DESIGNATON



VHPD──F──70+30──  A3

   ①         ②          ③           ④



① 双联系列号码Serial Nunber

②装配型式 Assemble model   L:脚座型 Foot Type   F:法兰型 Frange Type

③ 吐出量Delivery capacity

④ 压力调整范围Range of Adjusting    A1: 15-35kg/cm²           A2: 35-70kg/cm²

                                                           A3: 70-105kg/cm²         A4: 105-140kg/cm²





◆ 性能表 / SPECIFICATION

型式 號碼 MODEL	最高壓力 (瞬間) MAX PRESSURE kg/cm2	吐出量 OUTPUT FLOW AT 3.5kg/cm2 1800 r.p.m. l/min	配管尺寸 PORTS SIZE					回轉速度 SPEED r.p.m		重量 WEIIGHT(kg)
			出口 OUT		入口 IN		回油 DR	最低 MIN	最高 MAX	腳座型 FOOT TYPE	法蘭型 FLANGE TYPE
VHPD-5430(40)	105	54+30(40)	3/4" (1/2")		1"  (3/4")		3/8"	800	1800	49	39
VHPD-7030(40)	105	70+30(40)									39
VHPD-8630(40)	105	86+30(40)

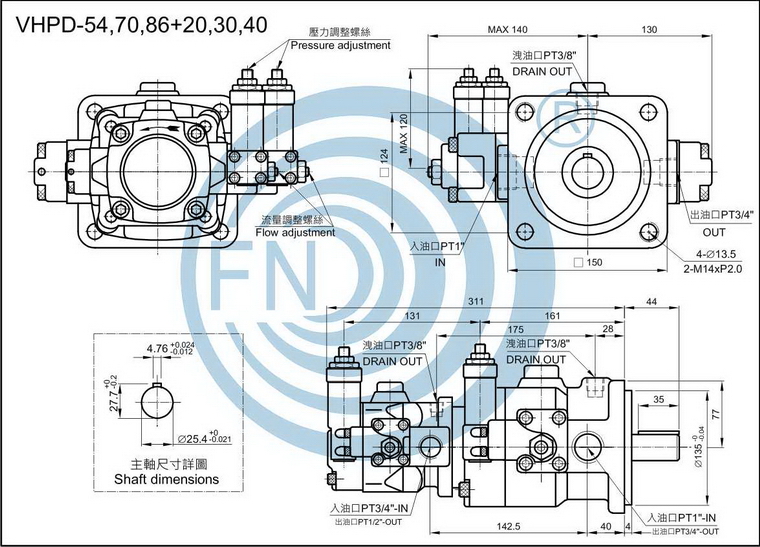

◆外觀尺寸圖 / DIMENSIONS(IN MILIMITERS)

VHPD-54,70,86+20,30,40.zip
