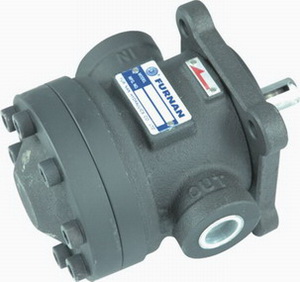

NO.: 50T Class: Fixed Displacement Vane Pump

◆Because of stable capability, the range of exhalation is the widest. Low noise, high efficiency, little horsepower, and vane pump. Available for the main processors, such as, a grilling machine、 a press machine、a folding machine.
 Also, the hydraulics machinery, like press casting machine, plastic injection and monostable machine are suitable for the low-pressure pump that belongs to the oil outlets on the high and low  pressure.



◆型式號碼表示法 / MODEL NUMBER DESIGNATON

    50T          36── F──R
      ①            ②       ③       ④

 ① 系列號碼Serial Nunber
 ②吐出量 Dilivery capacity
 ③裝配型式 Assemble model      F:法蘭型 Frange Type
                                                    L:腳座型 Foot Type
 ④ 回轉方向 (自軸側觀之) Direction of Revolving ( Side View of Self  Aligning Bearing)
                                                                               R:順時針方向Clock wise Direction
                                                                               L:反時針方向counter-clockwise direction


◆性能表 / SPECIFICATION

型式號碼
MODEL
吐出容積  cc/rev
DELIVERY CAPACITY
最高壓力
MAX. PRESSURE
kgf/cm2
迴轉速度
SPEED r.p.m
配管尺寸PT
PORTS SIZE
重量
WEIGHT (kg)
最低
MIN
最高
MAX
入口
IN
出口
OUT
腳座型
FOOT
TYPE
法蘭型
FLANGE
TYPE
迴轉速度SPEED( r.p.m)
1000
1200
1500
1800
50T-07
7.0
8.2
10.3
    12.5
70
950
1800
1”
3/4”
10.5
9
50T-12
12.2.
14. 3
18.2
21.5
50T-14
14.5
17. 3
21.5
26
50T-17
17.1
20.2
25.5
31.5
50T-20
20.0
23.8
29.8
36.1
50T-23
23.1
27.4
34.3
41.3
50T-26
26.2
31.2
39.2
46.5
50T-30
30.2
36.2
45.2
54.1
50T-36
36.2
41.5
54.5
64.2
50T-39
39.0
46.6
58.3

  1500
  50T-43     43    51.6    64.5    1500

◆外觀尺寸圖 / DIMENSIONS(IN MILIMITERS)
