Product Detail

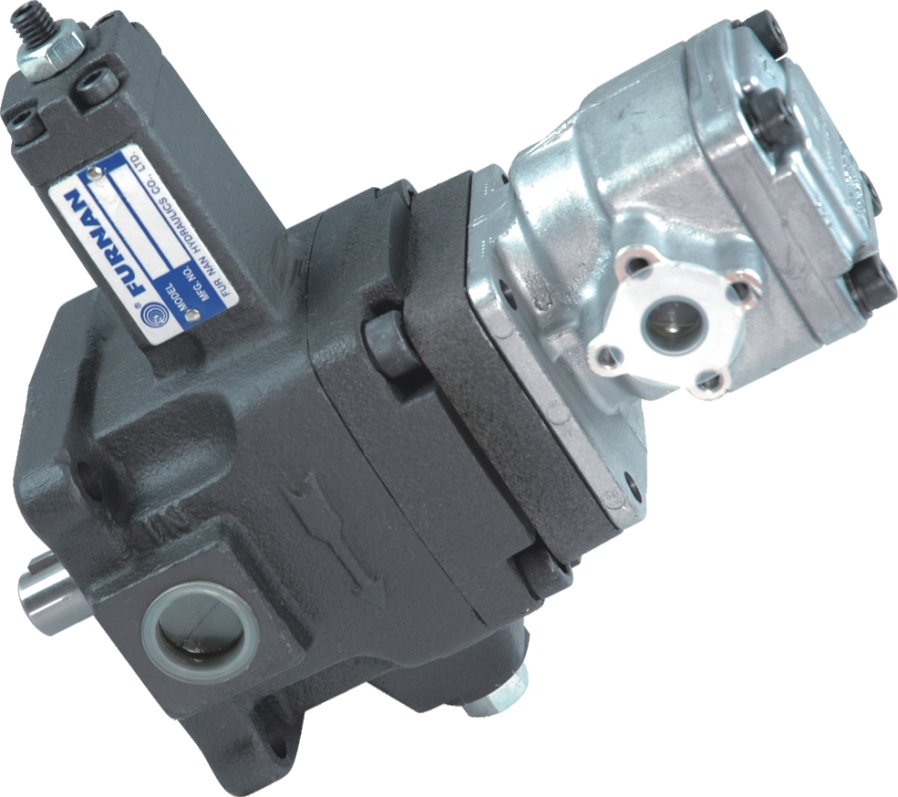

NO.: VHI+PA(HGP-2A) Class: High & Low Pressure Double Pump

特點 / FEATURES:
1. 共用一心軸及馬達，節省空間。
2. 高低壓雙段組合幫浦，高壓幫浦可由客戶指配合
1. Employed same shaft & motor, occupied little space.
2. Available for the user to pre-appoint the One-Step Pump of High Pressure and the  High-Low Pump.


◆型式號碼表示法 / MODEL NUMBER DESIGNATON
    VHI──F──30+PA ──A2
     ①       ②       ③    ④         ⑤

① 系列號碼Serial Nunber
② 裝配型式Assemble model     F:法蘭型 Frange Type    L:腳座型 Foot Type
③ 吐出量Delivery capacity
④ 高壓齒輪幫浦(可由客戶指定)Gear pumps
⑤ 壓力調整範圍Range of Adjusting    A1: 8-35 kg/cm²
                                                           A2: 35-70 kg/cm²


◆性能表 / SPECIFICATION
型式
號碼
MODEL
最高壓力
MAX
PRESSURE
kg/cm2
吐出量
OUTPUT FLOW
AT 3.5kg/cm2
1800 r.p.m.
l/min
配管尺寸
PORTS SIZE
回轉速度
SPEED (r.p.m)
重量
WEIIGHT(kg)
出口
OUT
入口
IN
回油
DR.
最低
MIN
最高
MAX
腳座型
FOOT
TYPE
法蘭型
FLANGE
TYPE
VHI-26+PA
70
26+PA
1/2”
3/4”
1/4”
900
1800
12+PA
9.1+PA
VHI-30+PA
70
30+PA
VHI-40+PA
70
40+PA
1/2”
3/4”
1/4”
900
1800
12+PA
9.1+PA

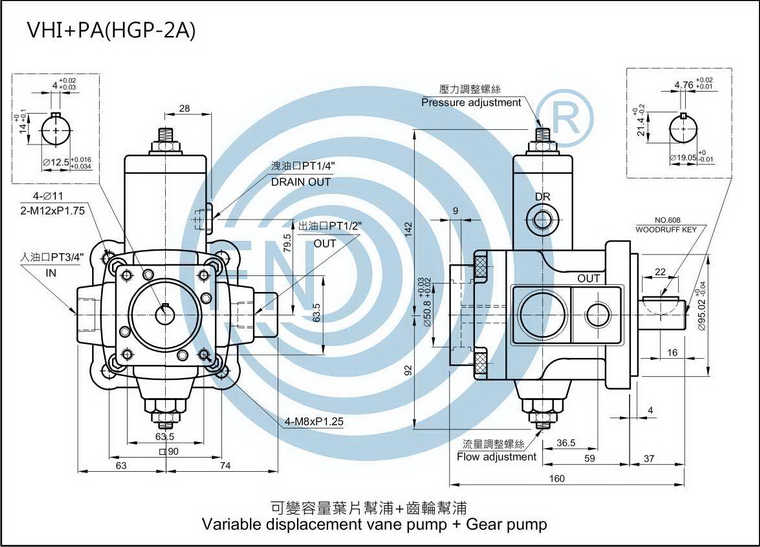

◆外觀尺寸圖 / DIMENSIONS(IN MILIMITERS)
