◆特點 / FEATURES:
1. 共用一心軸及馬達，節省空間。
2. 高低壓雙段組合幫浦，高壓幫浦可由客戶指配合
1. Employed same shaft & motor, occupied little space.
2. Available for the user to pre-appoint the One-Step Pump of High Pressure and the High- Low Pump.
◆型式號碼表示 / MODEL NUMBER OF DESIGNATON
50T------36 + PV2R1 14--- - F R
① ② ① ② ③ ④
①双联系列號碼Serial Nunber
②吐出量 Dilivery capacity
③裝配型式 Assemble model L:腳座型 Foot Type
F:法蘭型 Frange Type
④ 回轉方向 (自軸側觀之) Direction of Revolving
R:順時針方向Clock wise Direction
L:反時針方向counter-clockwise direction
◆性能表 / SPECIFICATION---*請參考50T,PV2R1

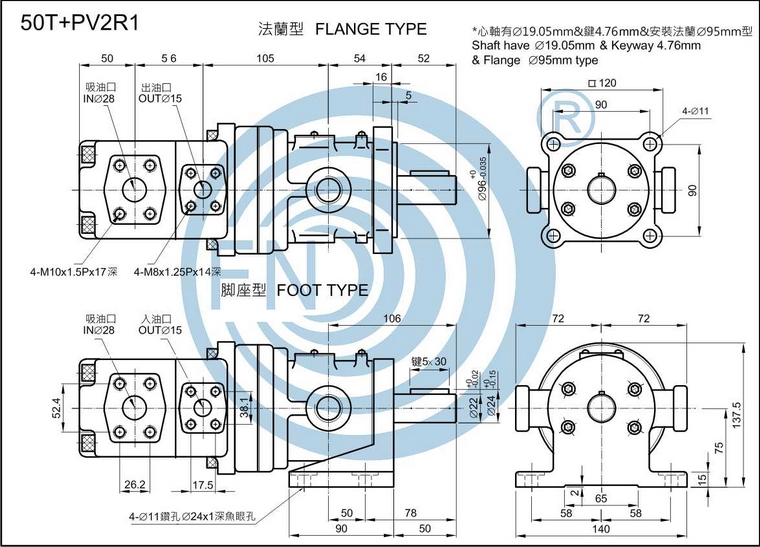

◆外觀尺寸圖 / DIMENSIONS(IN MILIMITERS)
